ACE 250 Plus - Slitting Machines


SLITTING MACHINE

Standard Features

1. Quick Lock System on Rewind

2. Rezor / Shear slitting

3. Unloading Booms

4. Unwind ‘Closed Loop’ Brake Control-Automatic Tension Control System

5. Pneumatic Shaft t unwind

6. AC Drive Technology



Standard Machine Specification



Web Widths

1050mm, 1550mm

Max. Unwind Diameter

800mm

Max. Rewind Diameter

400m

Max. Speed

300/min*

Materials

Plain Film, Printed Film,

Label Stock,

Laminates, Metalized Film.



Optional Features

1. Laser Core Positioning

2. ‘Closed loop’ Load Cell Rewind Control

3. Static Eliminator

4. Differential Shaft On Rewind (Differential Winding System)



Differential Winding System

The differential winding system uses ‘Ball Lock’ which offers the ease of using different widths of the substrate being rewound on the same shaft as it maintains constant tension. There is no need to adujust the rewind shafts between slit width changes. This minimizes ‘downtime’ and increases productivity as no spacers are needed. Moreover any web profile variation is automatically compensated by the differential system.



Digital Web Guiding System

The digital web guiding system ensures precision alignment as the substrate enters the slitter section. the set up interface is oertor friendly as the web can be guided by edge, centre and printed continuous or broken lines.



Slitter Section

The slitter section has been ergonomically designed to give the operator safe and sure access to the knives. Slitting options of Razor covering a rang of substrates.

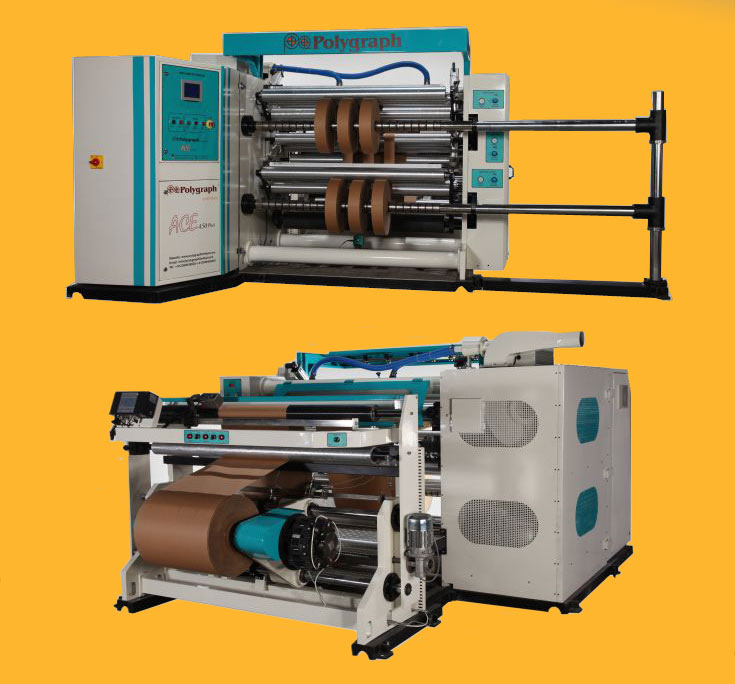

ACE 450 PLUS - Slitting Machine



SALIENT FEATURES

Quick Lock System on Rewind Digital Line Guide System
 Razor / Shear slitting System
 Unloading Booms
 Shaftless unwind Stationl Static Eliminator
 Unwind ‘Closed Loop’ Brake Controll Asynchronous / AC Drive TechnologylTouch Screen Operator Interface
 Laser Core Positioning
 ‘Closed loop’ Rewind Control
